ARP: Enhancing Quantized Skill Abstractions via Visual Alignment and Iterative Refinement for Robotic Manipulation

Yuntian Wang1, Zesheng Jia1, Yuhui Duan1, Qibing Wang2, Yang Liu3, Song Wang4, Siao Liu1,*, and Jin Wang1,*

1Soochow University · 2China Jiliang University · 3Tongji University · 4Leju Robotics

*Corresponding authors

Video

Abstract

Learning visuomotor policies for long-horizon manipulation remains a fundamental challenge. Recent skill-based imitation learning methods based on discrete quantization have shown promising results by representing complex behaviors as temporally extended skills. However, most existing approaches primarily encode action trajectories into latent skills, yielding weak visual-semantic grounding and limiting the ability to leverage visual observations for skill selection. Moreover, discrete tokenization inevitably incurs precision errors during continuous action generation. To alleviate these issues, we propose Aligned Refinement Policy (ARP), a discrete-skill framework that couples semantic grounding with execution-level refinement. Specifically, ARP introduces (i) a visual-action alignment objective that contrastively aligns visual embeddings with pre-quantized action representations in a shared latent space while preserving a state-independent skill decoder, and (ii) a lightweight Iterative Residual Head (IRH) that performs a two-step refinement to recover fine-grained control for precise execution. Extensive experiments show that ARP achieves state-of-the-art performance on the LIBERO and Meta-World benchmarks. Moreover, real-robot experiments on the Kuavo 4 Pro humanoid platform further validate its effectiveness, yielding consistent performance gains over several baselines on two challenging manipulation tasks.

ARP Pipeline

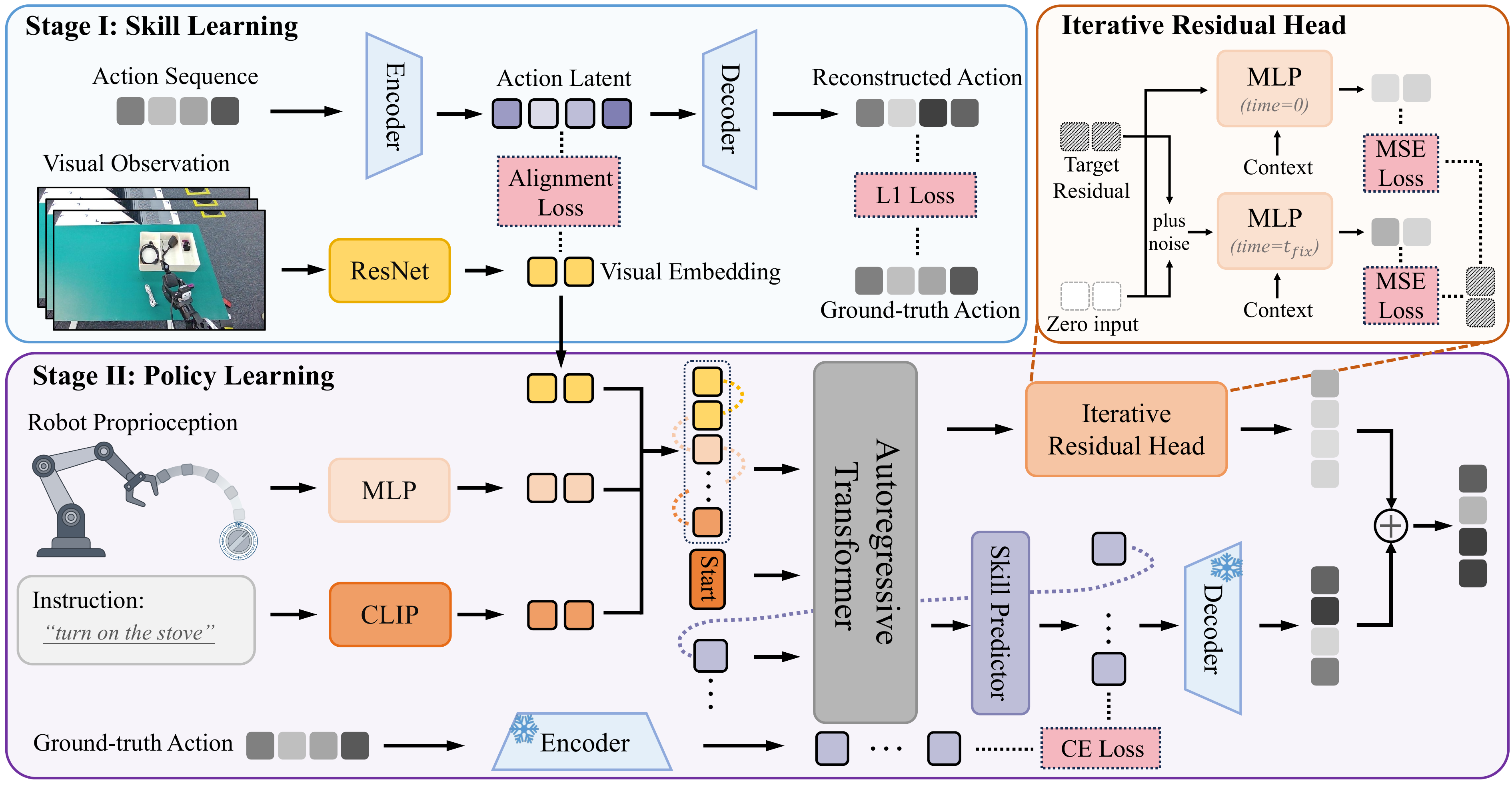

ARP framework pipeline showing Stage I action skill learning with visual-action alignment and Stage II skill prior with iterative residual refinement.
Stage I learns discrete action skills through reconstruction and contrastive alignment of action latents with visual embeddings. Stage II trains an autoregressive skill prior, decodes predicted tokens into actions, and refines them with an iterative residual head.

Results

LIBERO Overall Performance

Baselines marked with are cited from original papers. Success Rate (%).

Method LIBERO-Object LIBERO-Spatial LIBERO-Goal LIBERO-Long LIBERO-90 Overall
Octo 85.7 ±0.9 78.9 ±1.0 84.6 ±0.9 51.1 ±1.3 -- 75.1 ±0.6
OpenVLA 88.4 ±0.8 84.7 ±0.9 79.2 ±1.0 53.7 ±1.3 -- 76.5 ±0.6
TraceVLA 85.2 ±0.4 84.6 ±0.2 75.1 ±0.3 74.8 ±1.0 -- 74.8 ±0.5
SpatialVLA 89.9 ±0.7 88.2 ±0.5 78.6 ±0.6 55.5 ±1.0 -- 78.1 ±0.7
ResNet-T 43.4 ±0.8 82.1 ±0.7 83.8 ±1.6 49.0 ±2.9 83.7 ±0.9 68.4 ±0.6
Diffusion Policy 78.2 ±0.6 71.9 ±0.9 73.6 ±2.8 45.8 ±4.3 74.6 ±0.8 68.8 ±0.4
ACT 58.6 ±0.6 77.9 ±2.7 70.3 ±3.5 48.0 ±2.6 55.3 ±1.1 62.0 ±1.7
MGP -- -- -- 77.0 88.9 --
VQ-BeT 77.1 ±2.7 84.0 ±0.8 64.8 ±0.4 59.7 ±0.4 81.8 ±0.5 73.5 ±0.5
QueST 80.7 ±1.5 79.5 ±0.7 81.0 ±1.0 70.0 ±0.8 86.2 ±0.5 79.5 ±0.4
ARP (Ours) 92.8 ±1.2 91.6 ±0.2 88.8 ±0.2 83.6 ±0.2 91.0 ±0.6 89.6 ±0.2

Meta-World Performance

Success Rate (%).

Methods Easy (28) Medium (11) Hard (6) Very Hard (5) Avg. SR
DP 83.6 31.1 10.8 26.6 38.0
DP3 90.9 61.6 38.0 49.0 59.9
CP 91.2 62.7 40.0 51.0 61.2
FlowPolicy 90.2 63.0 39.2 36.0 57.1
MGP 92.0 65.0 44.0 53.8 63.7
ARP (Ours) 91.5 71.3 65.8 67.9 73.8

ARP couples visual-action alignment with lightweight iterative refinement, improving long-horizon robotic manipulation across simulation benchmarks and real-world Kuavo 4 Pro tasks.
